Product Details

Description

Mechanical mud pump packages are powered by diesel engines, transmitted by hydraulic transmission, hydraulic coupling or gearbox, and finally the mud pumps are driven by belts or chains. The master skid could be made into conventional skid type or trailer type easy for transportation. As per request of user, rain shield, sand shield, winter protection devices could be configured. The structure of mud pump package is easy to operate and maintenance, and owns compact, stable, safe and reliable characteristics to meet the requirements of the continuous drilling operation. The design, manufacturing and testing of related parts are compliant with following standards:

API Spec 7K, Specification for Drilling and Well servicing Equipment
API RP 500, Recommended Practice for Classification of Locations for Electrical Installations at Petroleum Facilities Classified as Class I, Division 1 and Division 2.
ANSI/AWS D1.1/D1.1M, Structure Welding Code-Steel
SY/T 6918, China Petroleum and Natural Gas Industries Standards -Drilling and Well Servicing Equipment-Mud Pump

Pump package working principle: After the diesel engine power decelerates via transmission/coupling/belt pulley couple, it will achieve the mud suction in low pressure and discharge in high pressure (max. 5000 PSI if dressed with 5” liner) with corresponding discharge displacement as per the performance chart within the piston rod load limit.

Pump package shall be suitable for use in the rough oilfield environments and be able to operate in ambient temperature ranges of -20℃ to +50℃ and relative humidity of up to 90%.

Features

Design and manufacturing compliant with API 7K specification.
Efficient power transmission design, shift smoothly.
Shear pin safety relief valve as default, spring reset relief valve optional.
External electric oil lubrication pump available as per request.

Specifications

Package model	JBZ5	JBZ8	JBZ10	JBZ13	JBZ16
Pump model	F-500	F-800	F-1000	F-1300	F-1600
Diesel engine model	CAT C15	CAT C27	CAT C32/3512	CAT C18x2	A12V190PZL
Rated power, hp	540	800	950	700x2	1608
Rated speed, rpm	2100	2100	2100	1800	1500
Transmission model	5620 OFS /BY620	6620 OFS /BY720	8610 OFS /BY920	BY720x2	ZDY450F2-1.6
Clutch model	NA	NA	NA	NA	2-LT600x125W820
Weight, kg	26000	31000	34000	44000	56000

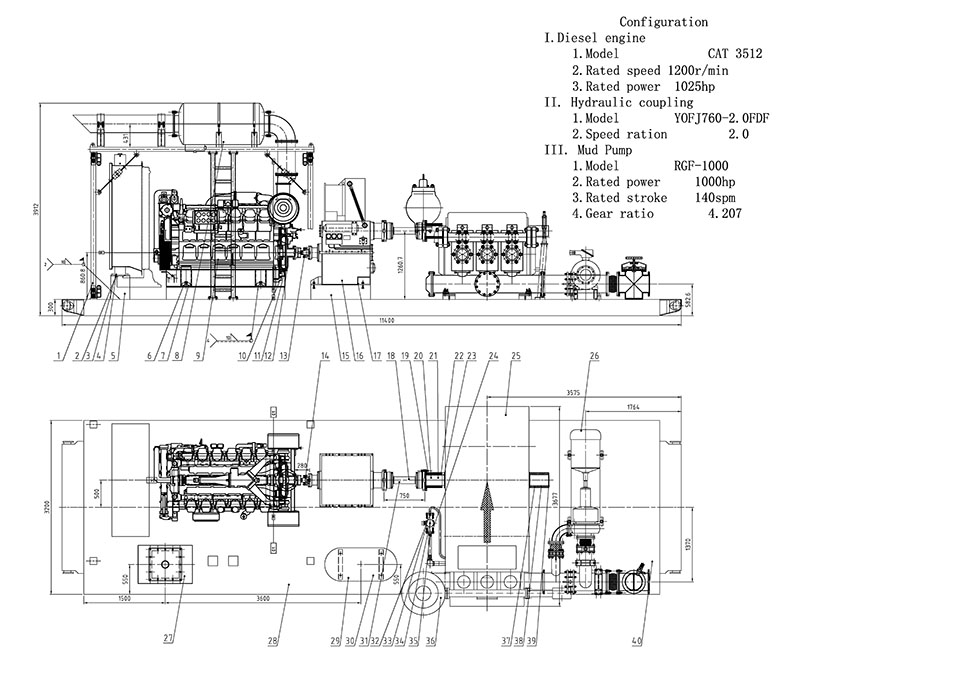

Layout drawing

typical for JBZ10N Mud pump unit

Packaging & Shipment

Packaging type: Seaworthy packing

Exporting port: Tianjin, Shanghai

FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
