Product Details

Description

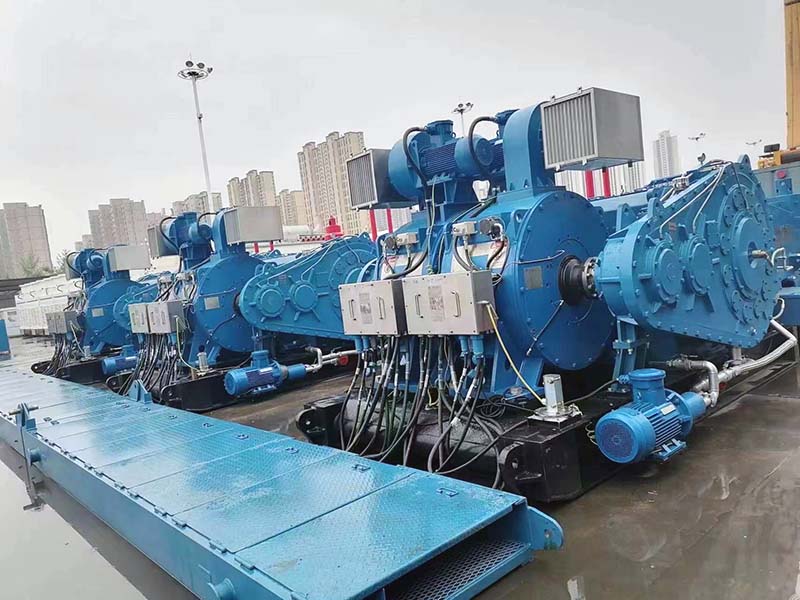

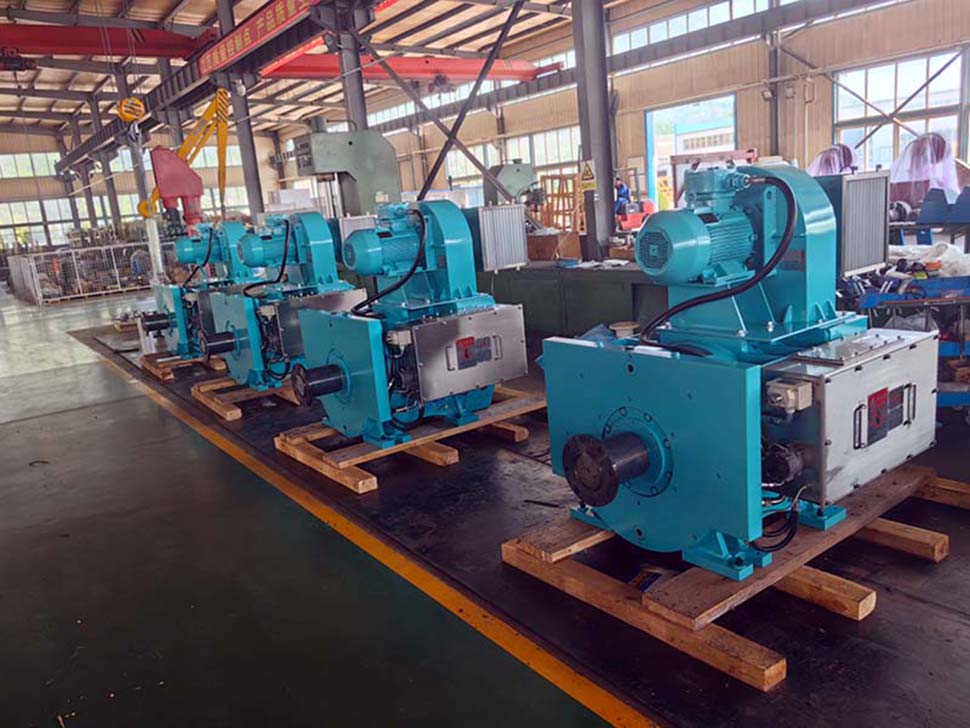

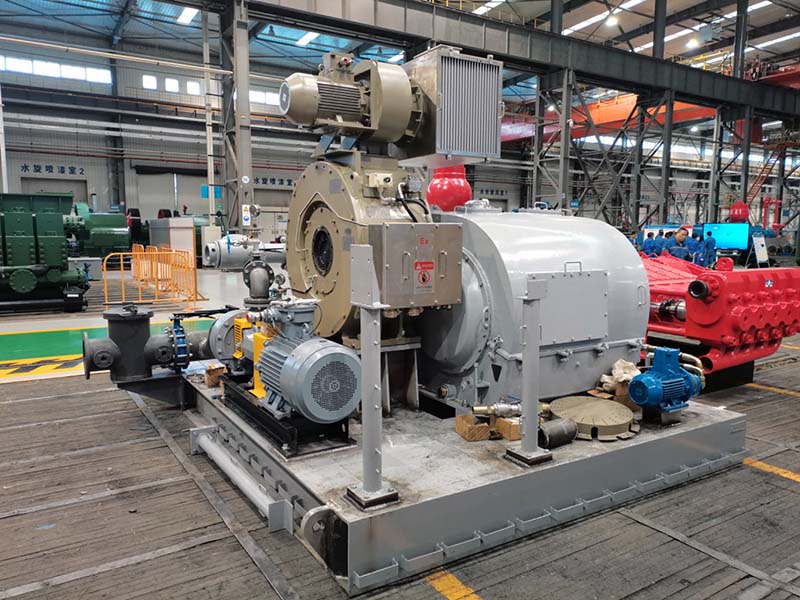

F1600HL drilling mud pump packages are powered by AC/DC electric motors, transmitted by ball cage universal joint, and finally the mud pumps are driven by belts. The other transmission type is direct drive motor, and the direct drive mode is with the benefits of energy saving, easier maintenance without belt pulley, lower noise, convenient transportation etc.

Features

Design and manufacturing compliant with API 7K specification.
L shaped fluid end module. High discharge pressure up to 7500PSI.
Shear pin safety relief valve as default, spring reset relief valve optional.
External electric oil lubrication pump available as per request.

Specifications

F-1600HL Mud Pump Displacement and Pressure Relation Form
Liner Diameter		Size mm	190	180		170	160	150	**140	**130	**120
Discharge Pressure		MPa	20.7	23.1		25.9	29.2	33.2	38.1	44.2	51.9
Discharge Pressure		Psi	3005	3345		3750	4235	4820	5530	6415	7500
Stroke	Input Power		Displacement, L/s
SPM	KW	HP	Displacement, L/s
130	1293	1733	56.17	50.42	44.97		39.83	35.01	30.50	26.30	22.41
*120	*1193	1600	51.85	46.54	41.50		36.77	32.32	28.15	24.27	20.68
110	1094	1467	47.53	42.66	38.05		33.71	29.62	25.81	22.25	18.96
100	994	1333	43.21	38.78	34.59		30.64	26.93	23.46	20.23	17.24
90	895	1200	38.89	34.90	31.13		27.58	24.24	21.11	18.21	15.51
80	795	1067	34.56	31.02	27.67		24.51	21.54	18.77	16.18	13.79
1			0.4321	0.3878	0.3459		0.3064	0.2693	0.2346	0.2023	0.1724

Note: 1. The form is calculated based upon 100% volumetric efficiency and 90% mechanical efficiency.

2.* indicates the recommended stroke per minute and continuous running input power.

3.** Plunger shall be used when working pressure exceeds 35MPa.

Packaging & Shipment

Packaging type: Seaworthy packing

Exporting port: Tianjin, Shanghai

FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
