Drilling Fluids Shale Shaker for Solids Control System

Shale Shaker Supplier
Shale Shaker Manufacturer
Shale Shaker Factory

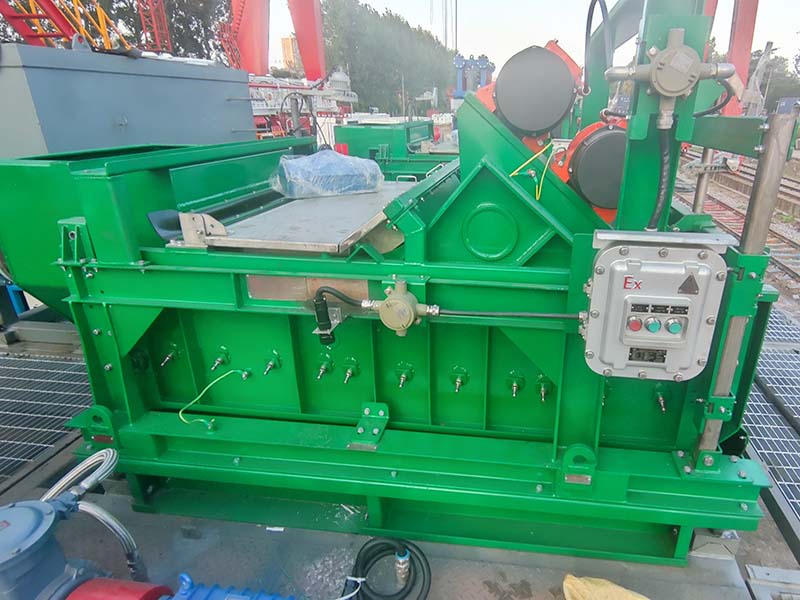

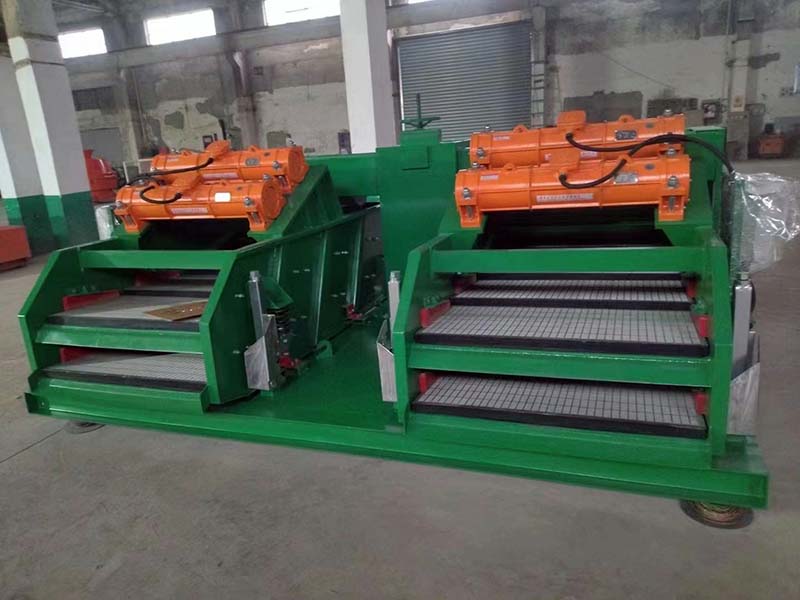

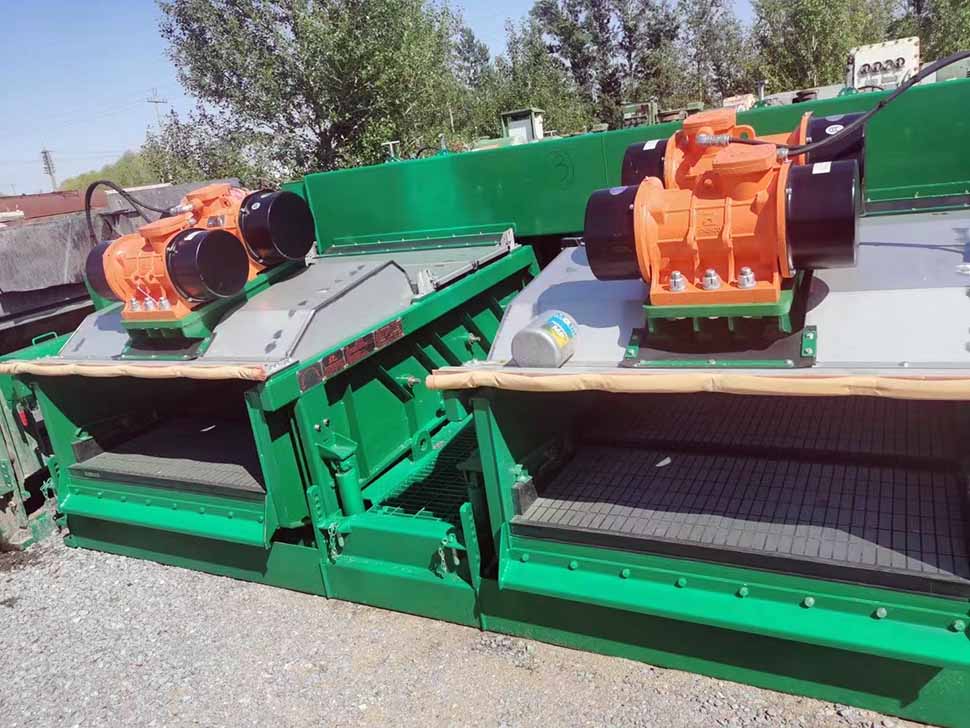

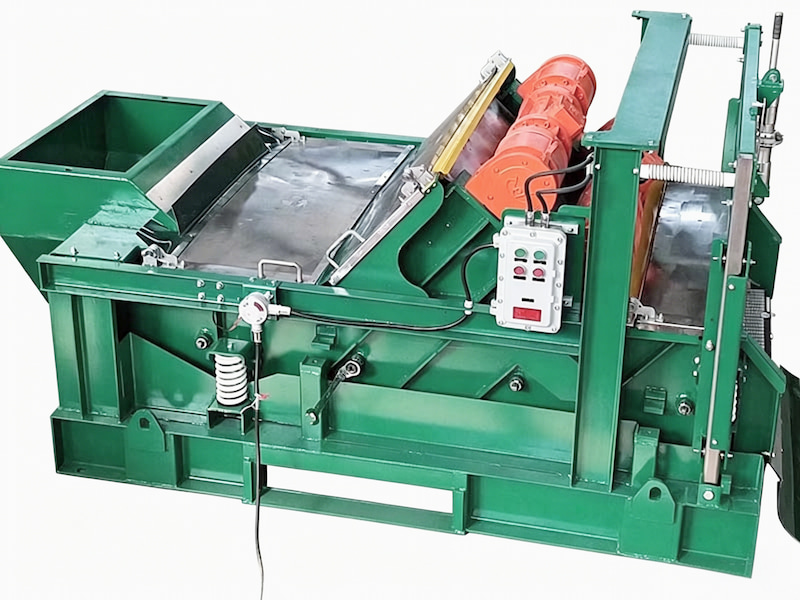

Drilling Fluids Shale Shaker for Solids Control System

As an integral component of the drilling fluid system, our shale shaker plays a vital role in separating drilling cuttings from the drilling fluid. With its superior efficiency, it effectively removes solid particles, ensuring the drilling fluid remains at optimum levels for smooth and uninterrupted drilling operations.

  • Brand :

    GST

  • Place of Origin :

    Henan, China

  • Type :

    Liner motion and dual motion

  • Certification :

    SY China Petroleum Industry Standards

  • Supply Ability :

    50 sets per month

  • Application :

    Solids Control

  • Material :

    Steel

  • Model :

    As per specification

Inquire Now

Description

Drilling fluid shale shakers are first stage solids removal equipment. We adopt intelligent control system and advanced vibrating motors, and supply single deck shaker panel, double deck shaker panel, duplex or triplex shaker panel upon user request. Our products are highlighted by intelligent control, high G force, large screen area, adjustable angle of shaker deck and compact structure etc.



Features

  • High G force for high viscosity and density mud separation.
  • Whole Heat treatment for shaker deck enables long working time under high G force.
  • Wedge block screen panel tensioning mechanism facilitates faster panel replacement time.
  • Faster mud conveyance rate and higher processing capacity.





Specifications



Model

ZS-752

ZS-583

ZS-584

ZS-585S

ZS-586D

Track of motion

Linear motion/dual motion

Process capacity, m³/h

60

120

140

165

140

Motor power, kW

2x0.8

2x2.2

2x2.2

2x2.2+1x1.3

2x2.2

Screen panels quantity

2

3

4

5

6

Screen panels dimension, mm

750x900

585x1165

585x1165

585x1165

585x1165

G force

7.5G

Dual amplitude, mm

4.5~6.0

4.5~6.0

4.5~6.0

4.5~6.3

4.5~6.3

Deck adjustment angle

0~+2°

-1~+5°

-1~+5°

-1~+4°

-1~+5°

Noise

<85dB

Explosion proof rating

ExdIIBt4/IECEX/ATEX

Weight, kg

900

1,300

1,500

1,900

1,600





Packaging & Shipment

Packaging type: Export Seaworthy

Exporting port: Tianjin, Shanghai



FAQ

1. Who are you?

Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.



2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.

Hot Tags : Drilling Fluid Shale Shaker Drilling Fluid Vibrating Shaker Solids Control System Shale Shaker Drilling Mud Shale Shaker Liner Motion Shale Shaker Dual Motion Shale Shaker Shale shaker in drilling rig Shale Shaker
Leave A Message
If you are interested in our products and want to know more details, please leave a message here, we will reply to you as soon as we can.
Submit
Related Products
Rotary Swivel Washpipe and Washpipe Packing
Workover Rig Wear Parts

Workover rig wear parts include brake pad, Eaton brake wear parts, push plate clutch wear parts, washpipe assembly, washpipe packing for rotary swivel etc.  Our products are fully interchangeable with RG and SJ brand workover rig.

API 6A Ring Joint Gasket Supplier
API 6A Metallic Ring Joint Gaskets

API 6A metallic ring joint gaskets are suitable for high pressure and high temperature applications. The gaskets are available in R, RX, BX styles and in oval or octagonal profiles. We supply gaskets in accordance with API 6A standards.

Ram BOP Bonnet Seal
Annular Blowout Preventer Drilling BOP Part Packing Element

Geostar could supply spherical and tapered packing elements for annular BOP, front packer and top seal for pipe ram, VBR (variable bore rams), shear rams for ram BOP. Our products have the advantages of adapting to various conditions such as high temperature, low temperature and high H2S content.

Flat Panel Shale Shaker Screen
Screens Mesh for Shale Shaker and Mud Cleaner

Geostar could supply screen mesh for shale shakers, desanders, desilters, mud cleaners etc. The types of screens include: composite screens, steel frame screens, flat screens, PU screens, stainless steel screens etc. Most of the screens can be interchangeable with international reputed brand.

High Pressure Mud Circulation Manifolds Supplier

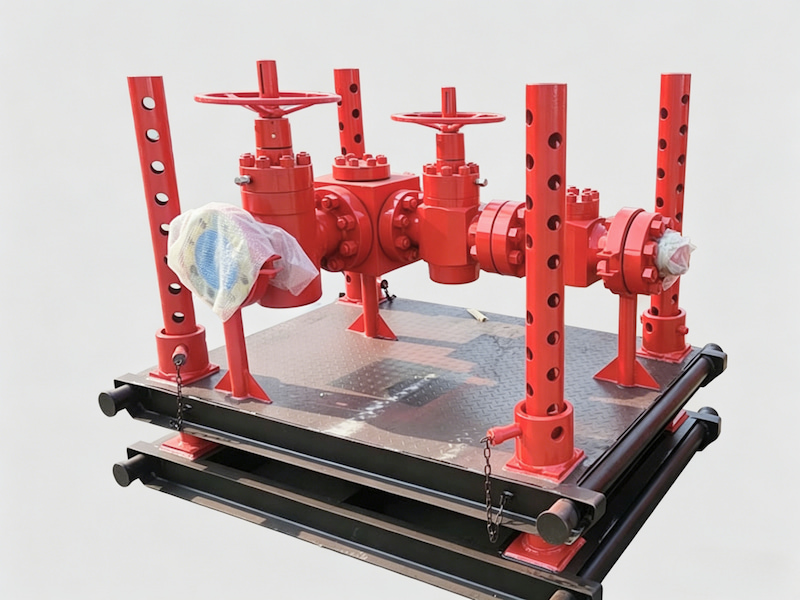

High Pressure Manifolds for Mud Circulation System
